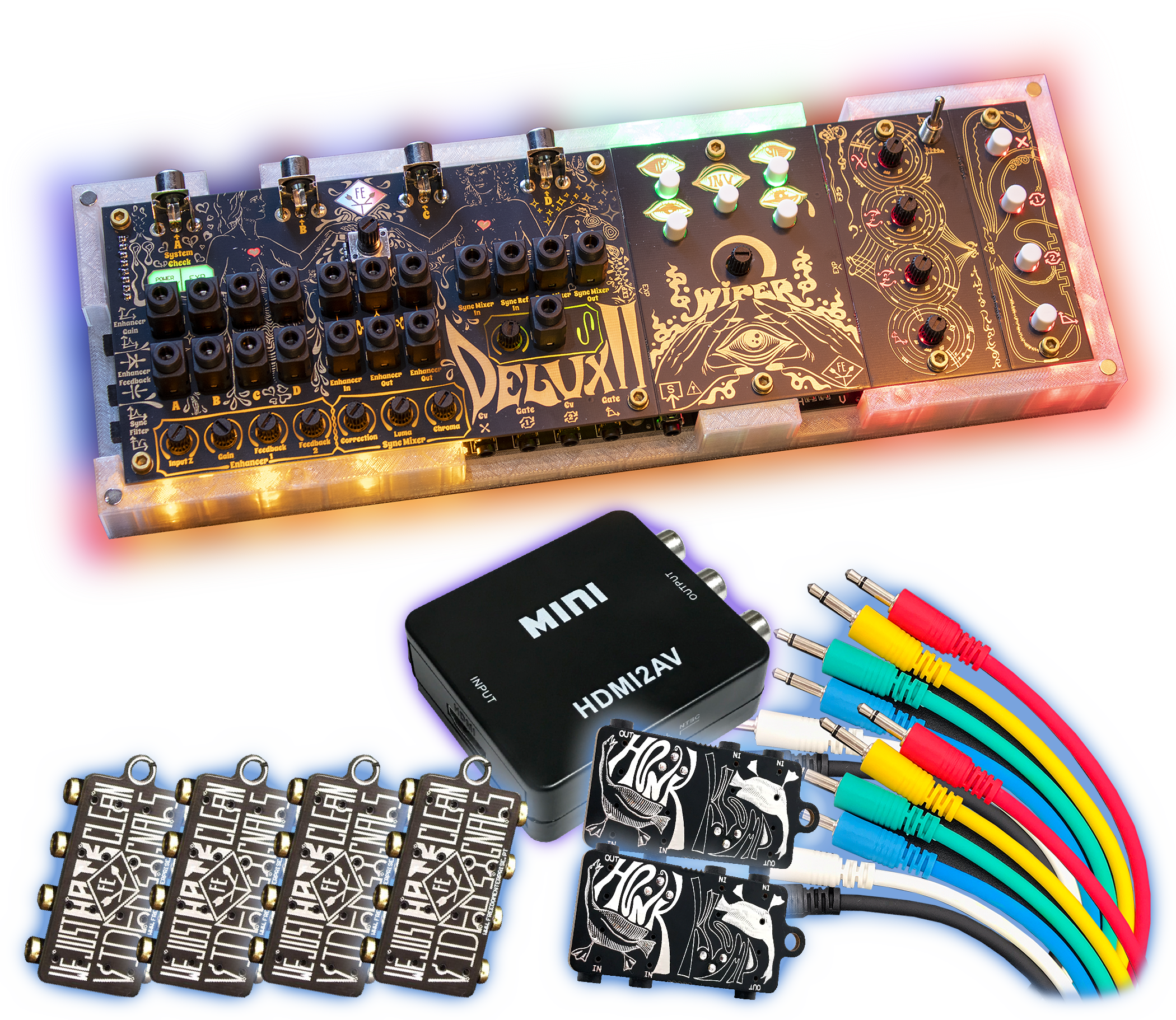

✪ mismatcher delux II
✪ protective case
✪ wiper
✪ audio reactor
✪ switch board
✪ hdmi2av
✪ 4x keychain splitters
✪ 2x honk klomp keychain
✪ 12x patch cables
delux II manual
wiper manual
audio reactor manual
the mismatcher delux ii with the full case and expansion setup is the most complete version of the mismatcher system, bringing together the redesigned delux ii unit and all compatible expansion modules in one compact handheld package.
at the center is the new mismatcher delux ii, rebuilt from the ground up while keeping the familiar control layout and patch interface that made earlier versions so immediate and playable.
this is the first handheld mismatcher powered by usb-c pd, allowing it to run at 9v instead of 5v, giving the circuit noticeably more headroom before clipping or distorting.
the built-in system check helps verify that your power source is correct and warns you if an expansion module is connected improperly, making the full setup more reliable and easier to use.
at the heart of the unit is the enhancer, the main video-glitch circuit, with four key controls: input z, gain, feedback 1, and feedback 2. these parameters can also be modulated externally using cv or gate signals for animated and responsive patches.
alongside these controls are two additional switches that reshape the circuit's internal behavior, changing both the gain frequency response and the internal feedback structure.
the redesigned sync mixer adds even more control, with dedicated knobs for correction, luma, and chroma, plus a switch to alter the sync mixer filter response for further image shaping.
the onboard oscillator introduces built-in motion and automation through its frequency-controlled sine wave output. route it into any cv or gate input to bring movement and modulation directly into your patches.

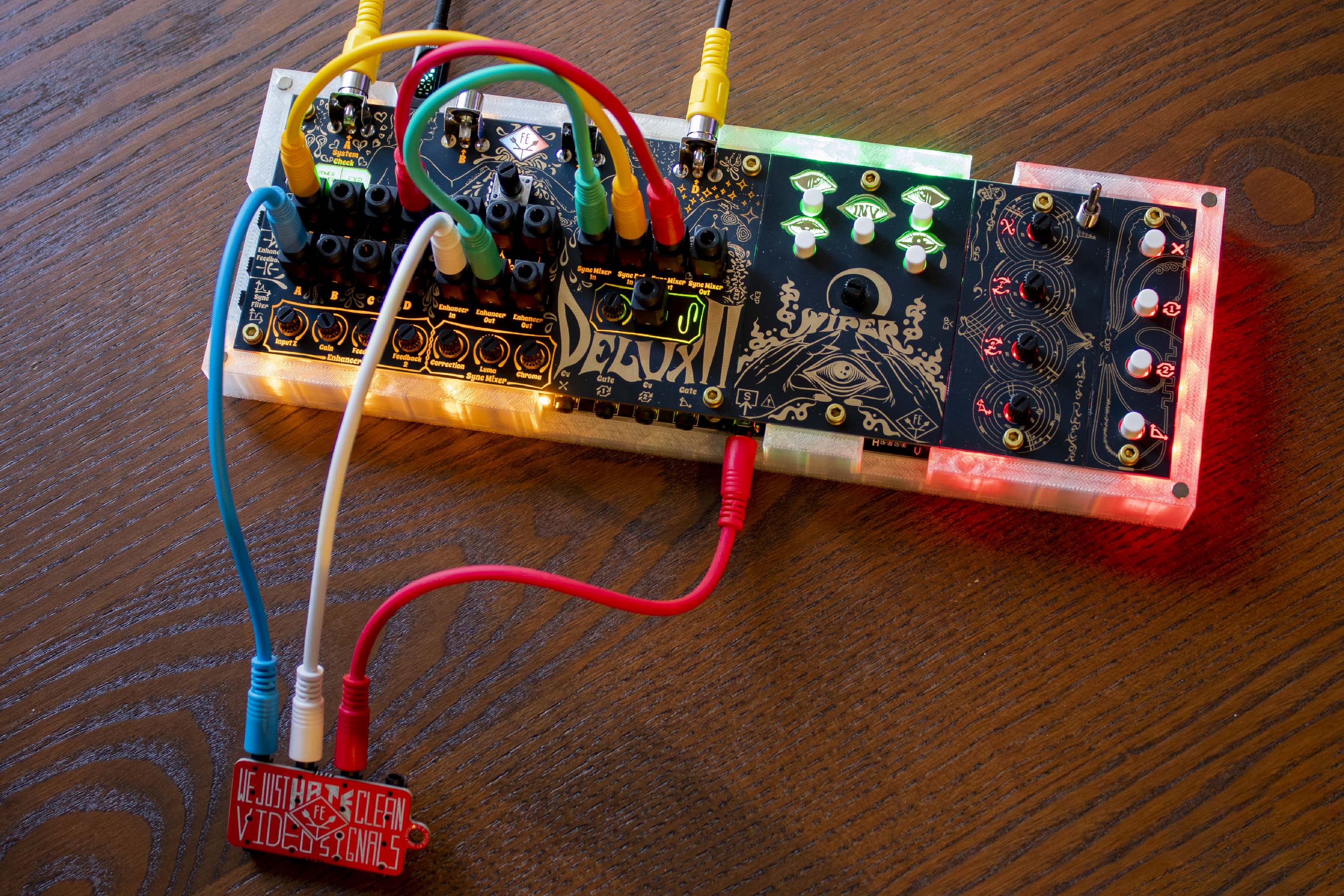

this full setup also includes all compatible expansion modules, giving you the widest possible range of control. the switch board makes it easy to toggle effects on and off during performance with large tactile buttons. the audio reactor adds music-reactive behavior, enabling and disabling effects in response to sound. the wiper expansion lets you control where effects appear on screen and create wipe-style transitions with precision.

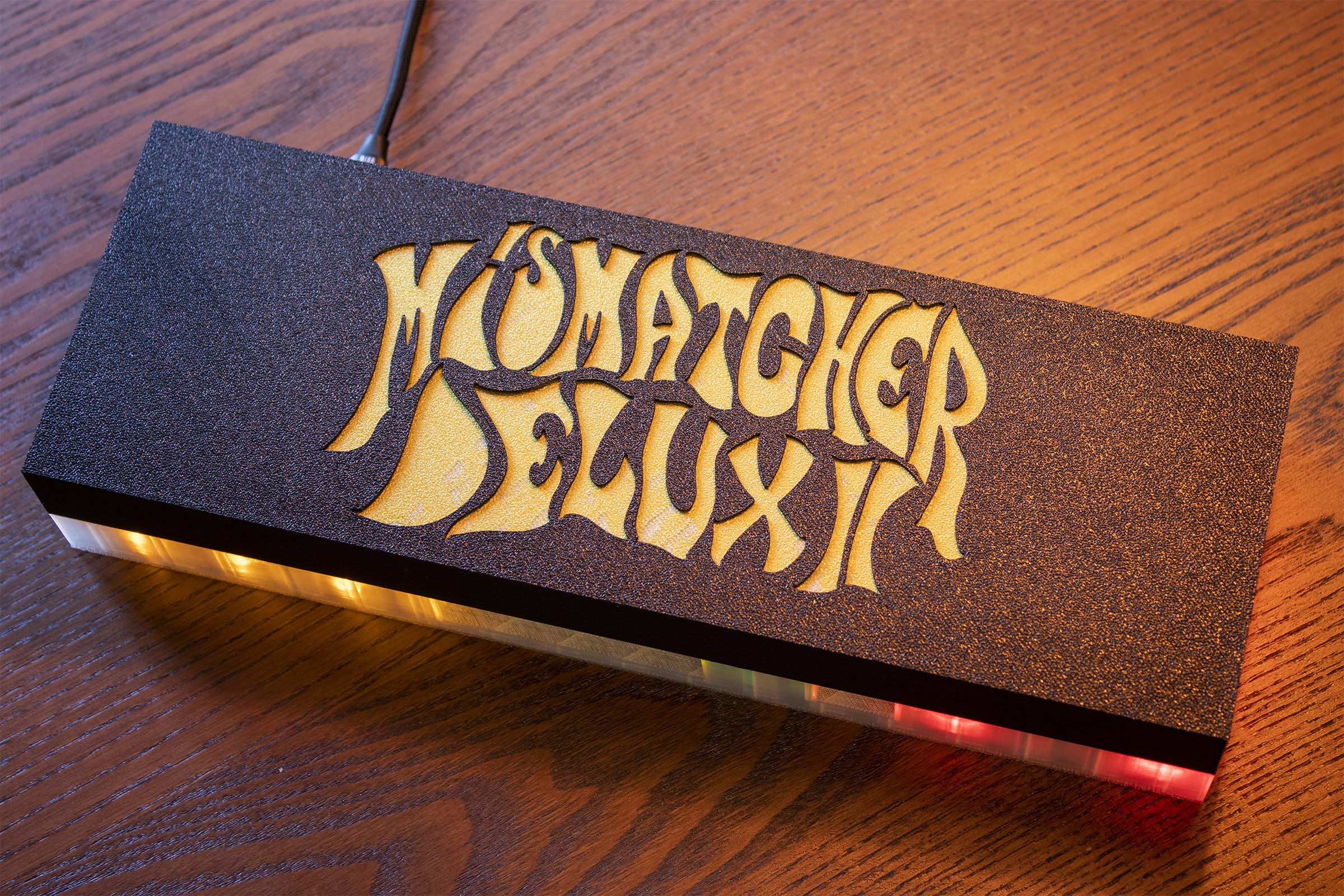

everything comes fully assembled inside the custom 3d printed case, so there is no assembly required. the case neatly houses the delux ii and its expansion modules in one self-contained unit, with a magnetic lid that snaps into place for a clean and compact finish.
---// faq //---
q: what's the keychain splitter for?
a: the keychain splitter lets you split a single video signal into multiple paths. this is useful when you want to feed the same source into different parts of the mismatcher delux II at the same time, enabling more complex feedback loops and glitch structures.
q: what is the wiper?
a: the wiper is an expansion for the mismatcher delux II that lets you control where effects appear across the screen, making it possible to create wipe-style transitions and spatial glitches.
q: what is the audio reactor?
a: the audio reactor is an expansion for the mismatcher delux II that allows your video signal to react to sound, making visuals pulse, distort, or shift in sync with music.
q: what is the switch board?
a: the switch board is an expansion for the mismatcher delux II that gives you quick control over your patches using illuminated tactile switches, making it easier to toggle effects on and off while performing.
q: what's the bare minimum equipment I need to use the mismatcher delux II?
a: you need a composite video source (like a camera, console, vcr, or dvd player), a display with composite input, and a few 3.5mm ts patch cables. the delux II comes ready to use out of the box.
q: can i use the mismatcher delux II with other video gear, like an edirol v4?
a: yes. as long as your equipment works with composite video, it can be integrated with the mismatcher delux II.
